How to install a pond heater: The Cloverleaf pond heater installation guide
As the temperature drops, every pond owner shares the same worry: “Will my pond freeze over and harm my fish?” There is a risk during this time of year that your pond may freeze over. Simply breaking the ice can stress your fish, and leaving the pond frozen over could cause water quality problems. (A frozen pond surface traps harmful gases and prevents oxygen from entering the water, which can be fatal for koi and goldfish alike.)
A simple solution is to add a small pond heater to keep a small area of the pond ice-free, allowing any toxic gases to escape from the pond and providing a bathing or drinking area for wildlife.

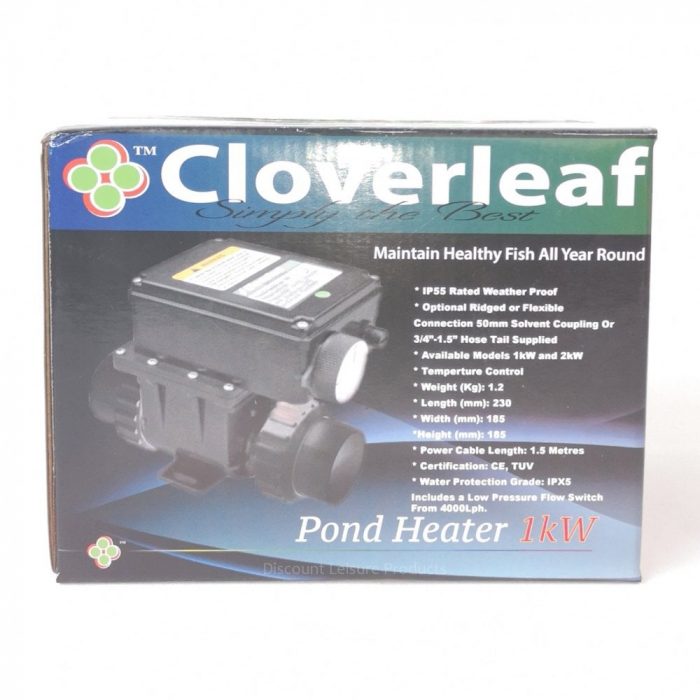

In this guide, we will show you how to install the Cloverleaf Pond Heater, a robust, reliable solution to prevent your pond from completely freezing over. Whether you want to keep a hole in the ice or maintain a specific temperature for winter feeding and treatments, this guide walks you through selection, installation, and costs.
Jump to:
- Key takeaways
- Why the Cloverleaf is the best outdoor pond heater
- What size pond heater do I need?
- How to install the Cloverleaf pond heater
- Pond heater running costs
- Is the Cloverleaf pond heater a good value for money?
- Troubleshooting & Common Issues
- Your FAQs answered
Key takeaways:
- Essential Winter Protection: Pond heaters prevent total freezing, allowing toxic gases to escape and ensuring your fish survive the coldest months.
- Correct Sizing is Critical: Match your heater to your pond volume (1kW for 1,000 gallons; 2kW for 2,000 gallons) to ensure efficiency.
- Simple Installation: The Cloverleaf model is designed for easy “in-line” connection to both flexible and solid pipework systems.
Why the Cloverleaf is the best outdoor pond heater
The Cloverleaf pond heater stands out as the best pond heater for several reasons:
- Versatility: Unlike many heaters that only work with one pipe type, the Cloverleaf comes with fittings for flexible pipes (3/4″ to 1.5″) and solid solvent-weld pipes (50mm and 1.5″).
- Durability: It is IP55-rated (weatherproof) and IPX5-rated for water protection, making it built to withstand outdoor conditions.
- Precision: It features built-in temperature control, allowing you to set it and forget it.
- Safety: Fully CE and TUV certified with a compact design that fits into tight filter houses or garden spaces.
What size pond heater do I need
Before you begin your installation or even purchase a pond heater, ensure you have the correct size for your pond. Find the right size using our pond heater calculator below:
Pond heater calculator
| Pond Volume (Gallons) | Pond Volume (Litres) | Recommended Cloverleaf Pond Heater Size |
| Up to 1,000 gal | ~4,500 L | 1kW Cloverleaf Heater |
| 1,001 – 2,000 gal | ~9,000 L | 2kW Cloverleaf Heater |
| Over 2,000 gal | ~9,000 L+ | Multiple units in series |
The 1kW Cloverleaf heater is the best small pond heater for smaller ponds and vice versa.

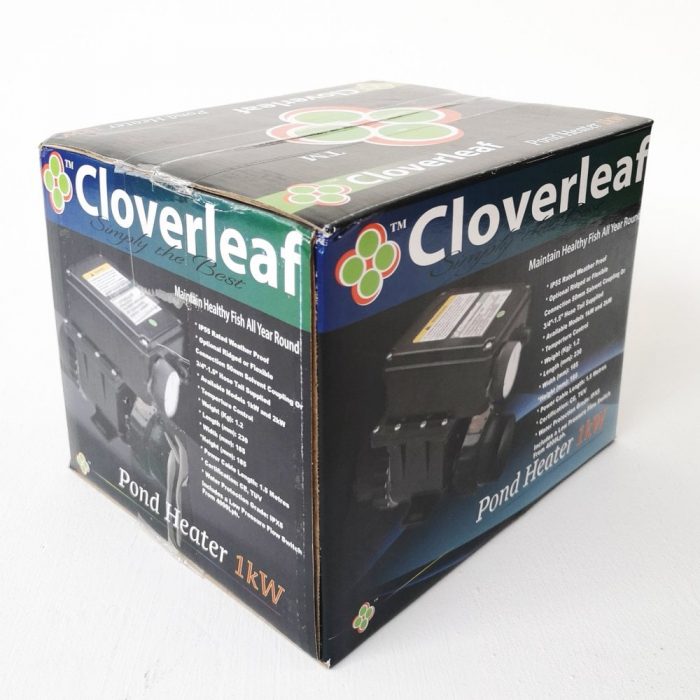

How to install the Cloverleaf pond heater
What You’ll Need
- Cloverleaf Pond Heater (1kW or 2kW model)
- Pond Pump (Minimum flow rate of 4,000 litres per hour)
- Screwdriver (For hose clips)
- Hose Clips (For flexible pipe installations)
- Solvent Weld Glue (Only if using 50mm or 1.5″ solid pipework)
- Suitable outdoor electrical RCD outlet
The Step-by-Step Installation Process
Step 1: Determine the Location
Place the heater on the return side of your filtration system (the “pump out-flow”). Doing this ensures that only clean, filtered water passes through the heater, preventing debris from building up on the heating element.
Step 2: Prepare the Fittings

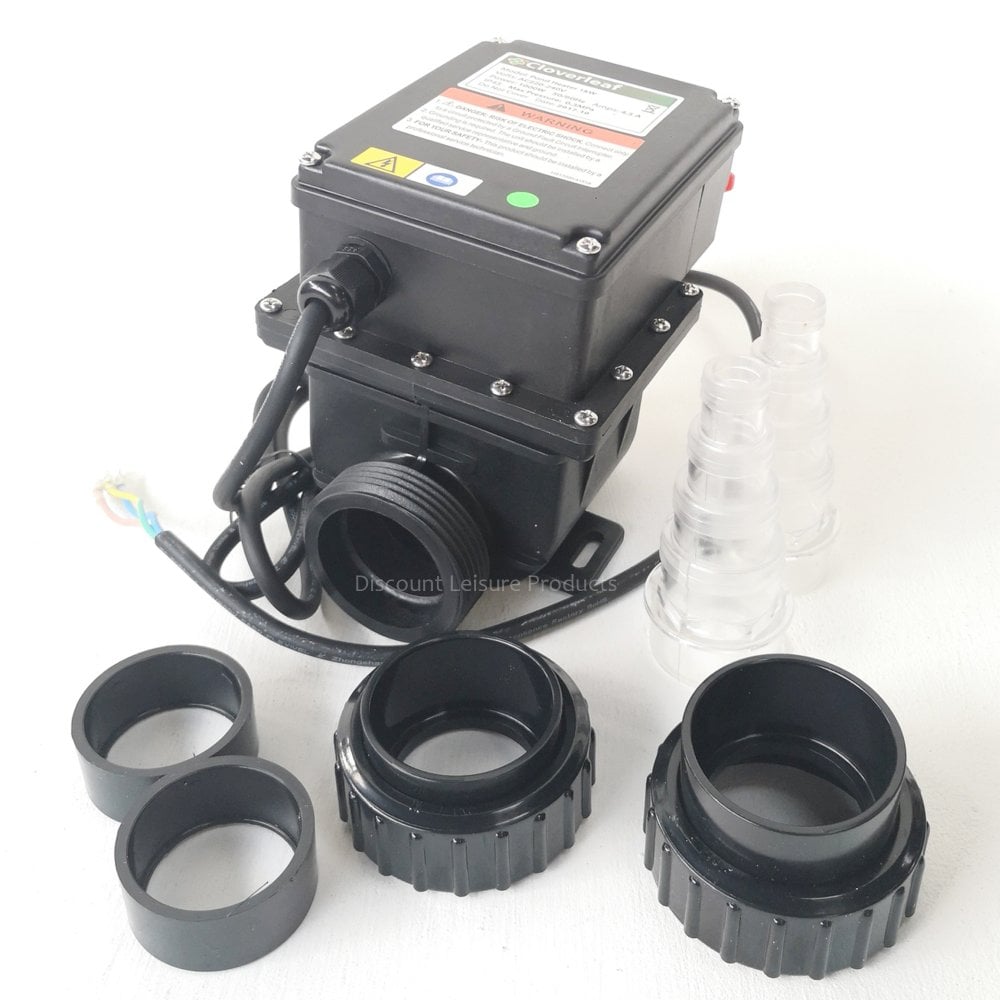

The Cloverleaf is supplied with various hosetails and bushes.
- For Flexi-pipe: Select the hosetail that matches your pipe ID (3/4″ to 1.5″).
- For Solid Pipe: Use the 50mm OD connection or the provided reducing bushes for 1.5″ (43mm OD) solvent weld pipe.
Step 3: Connect to the Pipework
Connect your pipework to the heater’s inlet and outlet.
Pro Tip: Ensure the water flow follows the direction indicated on the unit. If using a flexible hose, always secure connections with high-quality stainless steel hose clips to prevent leaks.
Step 4: Ensure Minimum Flow
Check that your pump provides at least 4,000 litres per hour. The Cloverleaf requires this flow rate to operate safely and prevent overheating.
Step 5: Electrical Connection
Plug the 1.5-metre cable into a weatherproof outdoor RCD-protected socket. We recommend having a qualified electrician handle any permanent outdoor wiring.

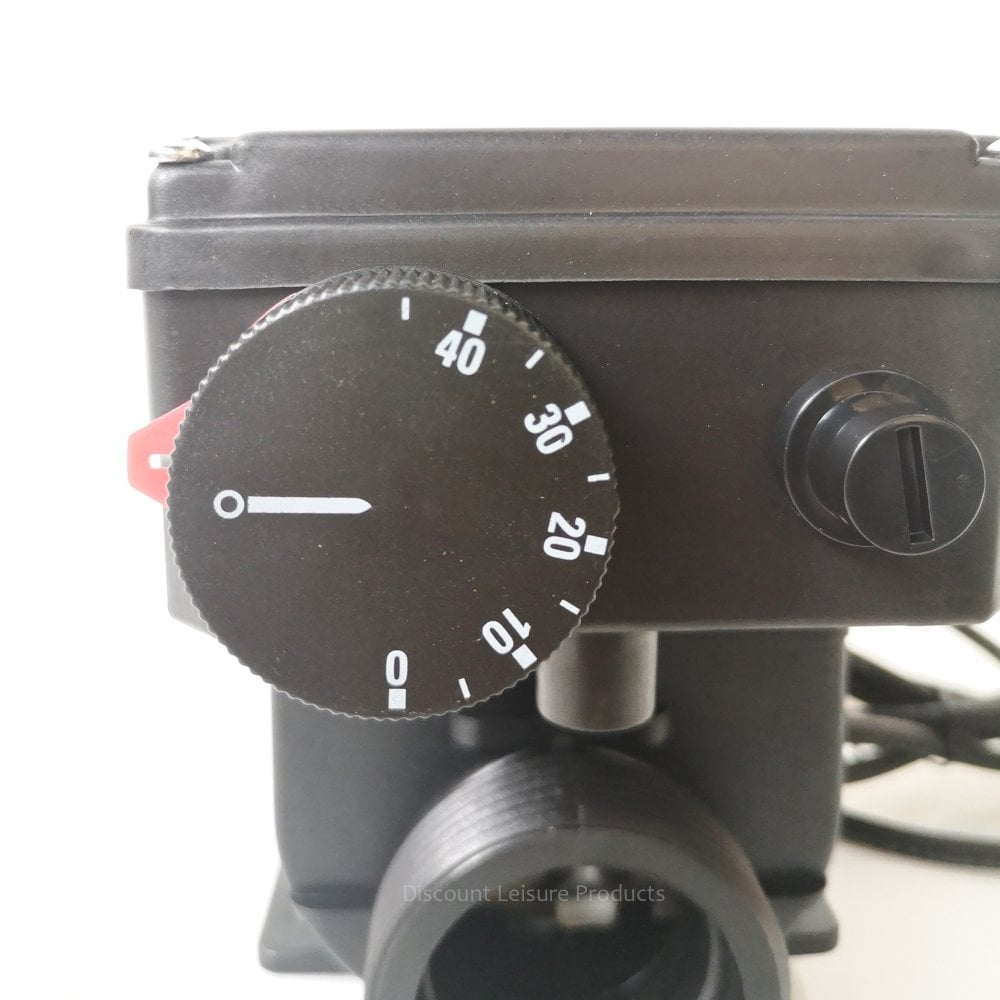

Step 6: Set the Temperature
Adjust the built-in thermostat to your desired level. To simply prevent freezing, a low setting is sufficient. If you are treating fish or wish to keep them feeding, set the dial accordingly.
Pond heater running costs
Running costs depend on your energy tariff, but here is a general breakdown based on an average UK electricity price of approx. 24.5p per kWh:
- Cloverleaf 1kW: Costs roughly 24.5p per hour of continuous running.
- Cloverleaf 2kW: Costs roughly 49p per hour of continuous running.
Industry Average: Most pond heaters fall within this range. However, because the Cloverleaf has a built-in thermostat, it will click off once the target temperature is reached, significantly reducing your daily bill compared to “always-on” heaters.
Is the Cloverleaf pond heater a good value for money?
If you’re looking for a cheap pond heater, the Cloverleaf model is an excellent value. It sits at the affordable end of the market for a high-quality, thermostatically controlled in-line heater, offering a professional setup without the professional price tag.
To give you a better idea of where this price sits in the current market, here is how it compares to other heating options:
Budget Level (Floating De-icers) | Price Range: £35 – £100
The Difference: These are low-wattage (50W–300W) floating units. They don’t heat the water’s actual volume; they only keep a small hole in the ice for gas exchange. The Cloverleaf is a significant step up to “true” water-temperature control.
Mid-Range (Affordable In-Line Heaters) | Price Range: £180 – £280
The Difference: This is where the Cloverleaf lives. It’s more affordable than similar brands that often retail between £240 and £260. Here at Discount Leisure Products, we also offer you the best value on the market for this model.
Premium Level (Titanium & Digital) | Price Range: £400 – £800+
The Difference: High-end brands use premium materials like titanium and digital controllers. While excellent, they are often 3 to 4 times as expensive as the Cloverleaf to do the same job.
Why the Cloverleaf Price Point is the “Sweet Spot”
For most garden pond hobbyists, the Cloverleaf offers the best “bang for your buck.” You are moving away from basic “ice-melters” and into a system that can actually maintain stable water temperatures for your fish’s health, without the heavy investment required for professional Koi-grade systems.
Troubleshooting & Common Issues
- Heater not heating: Check your pump flow. If the flow is below 4,000 LPH, the safety switch may prevent the unit from firing up.
- Leaking at the joints: Ensure hose clips are tight or that solvent weld glue has fully cured before turning on the pump.
- Tripping electrics: Ensure the unit is plugged into a dry, IP-rated outdoor socket and that the cable hasn’t been damaged during garden maintenance.
Your FAQs answered
Do outdoor ponds need heaters?
While the whole pond doesn’t need to be “bath warm,” keeping the water slightly elevated prevents ice damage to the pond structure and stress on the fish.
Do I need a pond heater?
If you live in an area where temperatures drop below freezing for several days, a heater is a vital insurance policy for your pond’s ecosystem.
Do goldfish need a heater in a pond?
Goldfish are hardy and can survive cold temperatures, but they cannot survive a pond that freezes solid. A heater is recommended to keep a vent hole open for gas exchange and to prevent the pond water from becoming toxic to your goldfish.
Do I need a heater for my koi pond?
Koi are more sensitive than goldfish. To maintain their immune systems and allow for winter feeding, many Koi keepers use heaters to keep the water above 10°C.
Can I use an aquarium heater in a pond?
No. Aquarium heaters are generally not powerful enough for the volume of a pond and are not designed to withstand outdoor weather conditions or high-flow pump systems.
Installing a Cloverleaf pond heater is one of the best investments you can make for your pond’s health. By following these steps, you’ve ensured that your fish will remain safe, active, and healthy throughout the winter months.
Shop for the best pond heater in the UK at Discount Leisure Products.
Now that you know how to install the Cloverleaf pond heater, it’s time to invest in the best pond heater for winter. Shop our pond heater collection and keep your fish happy and healthy through the winter months.
